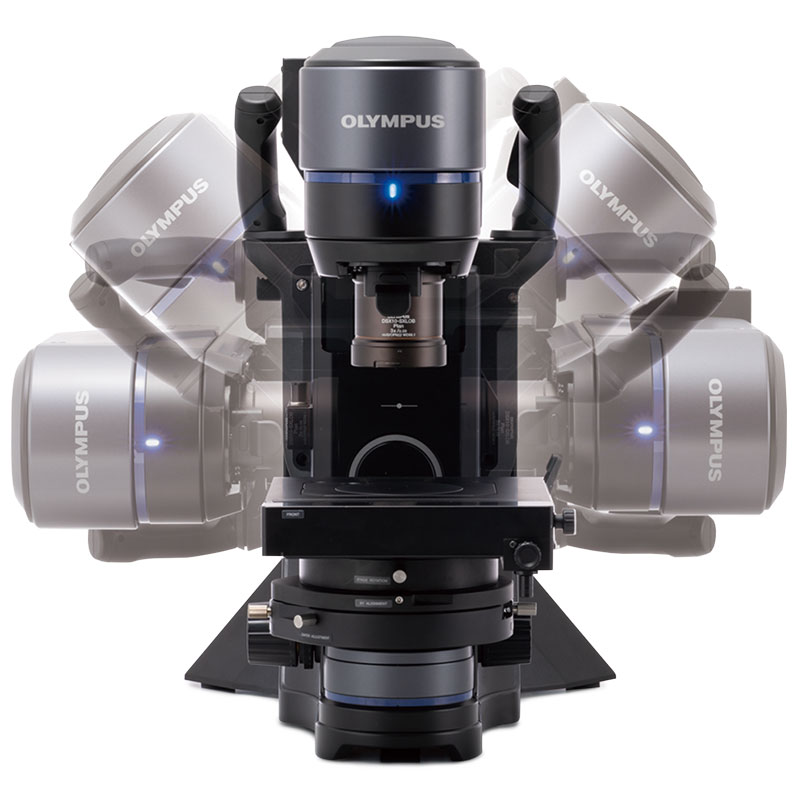

Be confident in your results. DSX1000 digital microscopes enable faster failure analysis with accuracy and repeatability. Streamline your inspection workflow with fast macro-to-micro viewing, multiple observation methods at the push of a button, and a large selection of lenses that are easy to change.
Powerful Analysis, Dynamic Imaging.
The DSX1000 digital microscope combines ease of use with advanced features to streamline your inspection workflow.
Large selection of lenses that are easy to change
Switch between 6 different observation methods by pushing a button
Fast macro to micro viewing
Accurate measurements with a telecentric optical system
Advanced measurements are fast and easy to obtain

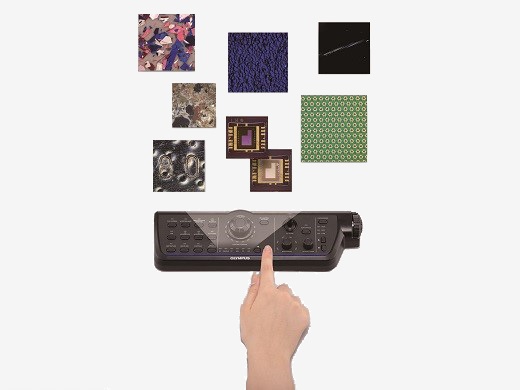

All Observations at All Magnifications
View your sample under 6 observation methods at all magnifications
Switching between observation methods is as simple as a single click
Objectives combine a long working distance and high resolution
Fast Motorized Optical Zoom
Fast Motorized Optical Zoom
Optically zoom in and out by simply turning the dial on the console, covering a wide range of magnifications with just one objective
The microscope’s advanced algorithms enable you to capture high-resolution 3D images just by pushing a button

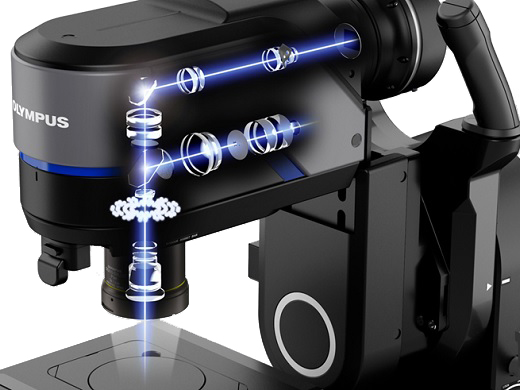

High-Precision Measurement with Telecentric Optics
The size of the image stays the same when adjusting the focus, increasing the precision of your measurements

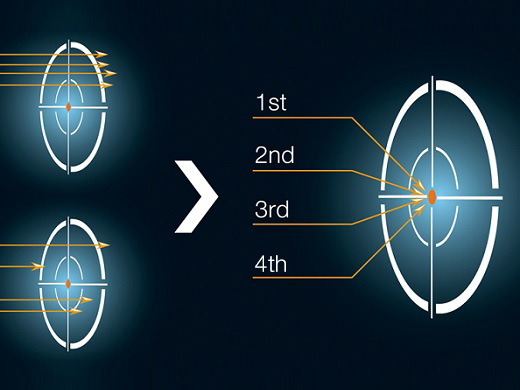

Be Confident in Your Results with Guaranteed* Accuracy and Precision
Accuracy and repeatability are guaranteed* at all magnifications
Reduce measurement fluctuation with auto calibration
On-site calibration for good performance in your working environment
*To guarantee XY accuracy, calibration work must be undertaken by an Evident service technician.
| 01 All-in-One System with a Wide Magnification Range | With the DSX1000 digital microscope: Complete your inspection using one easy-to-use system | With a conventional digital microscope: Two microscopes, a low-magnification and a high-magnification model, are needed to complete an inspection |
| 02 High-Resolution Image at High Magnification | With the DSX1000 digital microscope: High resolution and long working distance in one objective | With a conventional digital microscope: Resolution decreases as magnification increases |
| 03 Long Working Distance Objectives | With the DSX1000 digital microscope: Observe uneven samples without bumping into them | With a conventional digital microscope: The objective can crash into the sample, potentially damaging it |
04 Multiple Observations with a Single Click | With the DSX1000 digital microscope: All 6 observation methods are available at all magnifications | With a conventional digital microscope: Only one or two observation methods are available, limiting what can be seen in the sample |
05 Guaranteed Accuracy and Precision | With the DSX1000 digital microscope: Both accuracy and repeatability are guaranteed at all magnifications | With a conventional digital microscope: The measurement precision is not guaranteed |
| DSX10-SZH | DSX10-UZH | |||
| Optical System | Optical system | Telecentric optical system | ||
| Zoom ratio | 10X (motorized) | |||
| Zoom magnification method | Motorized | |||
| Calibration | Automatic | |||
| Lens attachment | Quick-switch, coded lens attachments automatically update magnification and visual field information | |||
|
Maximum total magnification (on a 27-inch monitor, 1:1 display, at 100% image magnification) | 9637X | |||
| Working distance (W.D.) | 66.1 mm – 0.35 mm | |||
| Accuracy and repeatability (X-Y plane) | Accuracy*1 | ± 3% | ||
| Repeatability 3σn-1 | 2% | |||
| Repeatability (Z axis)*2 | Repeatabilty σn-1 | 1 μm | ||
| Camera | Image sensor | 1 / 1.2 inch, 2.35 million pixel color CMOS | ||
| Cooling | Peltier cooling | |||
| Frame rate | 60 fps (maximum) | |||
| Low | 960 × 600 (16:10) | |||
| Medium | 1600 × 1200 (4:3) / 1920 × 1080 (16:9) / 1920 × 1200 (16:10) / 1200 × 1200 (1:1) | |||
| High (pixel shift mode) | 2880 × 1800 (16:10) | |||
| Super high (pixel shift mode) | 5760 × 3600 (16:10) | |||
| 3CMOS mode (high quality) | Not available | Available (high and super high modes only) | ||
| Illumination | Color light source | LED | ||
| Lifetime | 60,000 h (design value) | |||
| Observation | BF (brightfield) | Standard | ||
| OBQ (oblique) | Standard | |||
| DF (darkfield) |
Standard LED ring divided into four divisions | |||
| MIX (brightfield+darkfield) |
Standard Simultaneous observation of BF + DF | |||
| PO (polarization) | Standard | |||
| DIC (differential interference) | Not available | Standard | ||
| Contrast up | Standard | |||
| Depth of focus up function | Not available | Standard | ||
| Transmitted lighting | Standard*3 | |||
| Focus | Focusing | Motorized | ||
| Stroke | 101 mm (motorized) | |||
*1 Calibration by an Evident or a dealer service technician is necessary. To guarantee the accuracy of XY, calibration with DSX-CALS-HR (calibration sample) is required. To issue certificates, calibration work must be undertaken by an Evident calibration service technician.
*2 When using a 20X or higher objective.
*3 The optional DSX10-ILT is required.
| Objective | DSX10-SXLOB | DSX10-XLOB | UIS2 | |
| Objective lens | Maximum sample height | 50 mm | 115 mm | 145 mm |
|
Maximum sample height (free angle observation) | 50 mm | |||
| Parfocal distance | 140 mm | 75 mm | 45 mm | |
| Lens attachment | Integrated with lens | Available | ||
|
Total magnification (on a 27-inch monitor, 1:1 display, at 100% image magnification) | 27 – 1927X | 58 – 7710X | 34*4 – 9637X | |
| Actual F.O.V. (μm) | 19,200 μｍ – 270 μｍ | 9,100 μｍ – 70 μｍ | 17,100 μｍ – 50 μｍ | |
| Adaptor | Diffusion adaptor (optional) | Available | Not Available | |
| Eliminate reflection adaptor (optional) | Available | Not Available | ||
| Lens attachment | Number of objectives that can be attached |
Up to 1 piece (attachment is integrated with lens) | Up to 2 pieces | |
| Objective lens case | Three lens attachments can be stored | |||
*4 Total (maximum) magnification when using MPLFLN1.25X
| Stage | DSX10-RMTS | DSX10-MTS | U-SIC4R2 |
| XY stage: motorized / manual | Motorized (with rotation function) | Motorized | Manual |
| XY stroke |
Stroke priority mode: 100 mm × 100 mm Rotation priority mode: 50 mm × 50 mm | 100 mm × 100 mm | 100 mm × 105 mm |
| Rotation angle |
Stroke priority mode : ±20° Rotation priority mode : ±90° | Not available | |
| Display rotation angle | GUI | Not available | |
| Load-resistance | 5 kg (11 lb) | 1 kg (2.2 lb) | |
| Frame | DSX-UF | DSX-TF |
| Z-axis stroke | 50 mm (manual) | |
| Tilt observation | Not available | ±90° |
| Tilt angle display | Not available | GUI |
| Tilt angle method | Not available | Manual, fix / release handle |
| Measurement | Standard | Basic interactive measurements |
| 3D Line profile measurement and simple 3D measurements | ||
| 2D Line profile measurements | ||
| Advanced interactive measurement, including auto-edge detection and auxiliary lines | ||
| Neural Network Labelling | ||
| Live AI | ||
| Offline EFI, Offline Panorama | ||
| Image enhancement filters | ||
| Optional | 3D Analysis Application* | |
| Count and Measure | ||
| Neural Network Training | ||
| Material Solutions | ||
| Auto edge measurement | ||
| Particle analysis | ||
| Sphere/cylinder surface angle analysis | ||
| Multi-data analysis** |
*Requires PV-3DAA.
**Requires Experimental total assist application software (OLS51-S-ETA).
| Display | 27-inch flat panel display |
| Resolution | 1920 (H) × 1080 (V) |
| System total | Upright frame system | Tilt frame system |
| Weight (frame, head, motorized stage, display, and console) | 43.7 kg (96.3 lb) | 46.7 kg (103 lb) |
| Power consumption | 100 – 120 V / 220 – 240 V, 1.1 / 0 .54 A, 50 / 60 Hz | |
